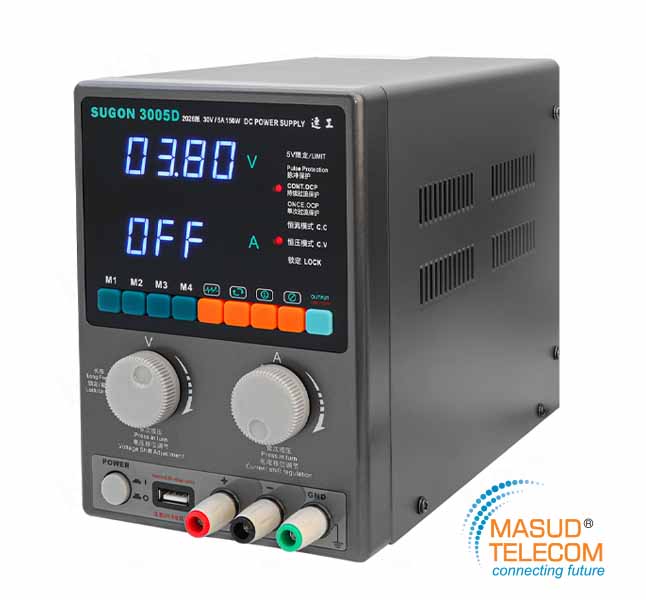

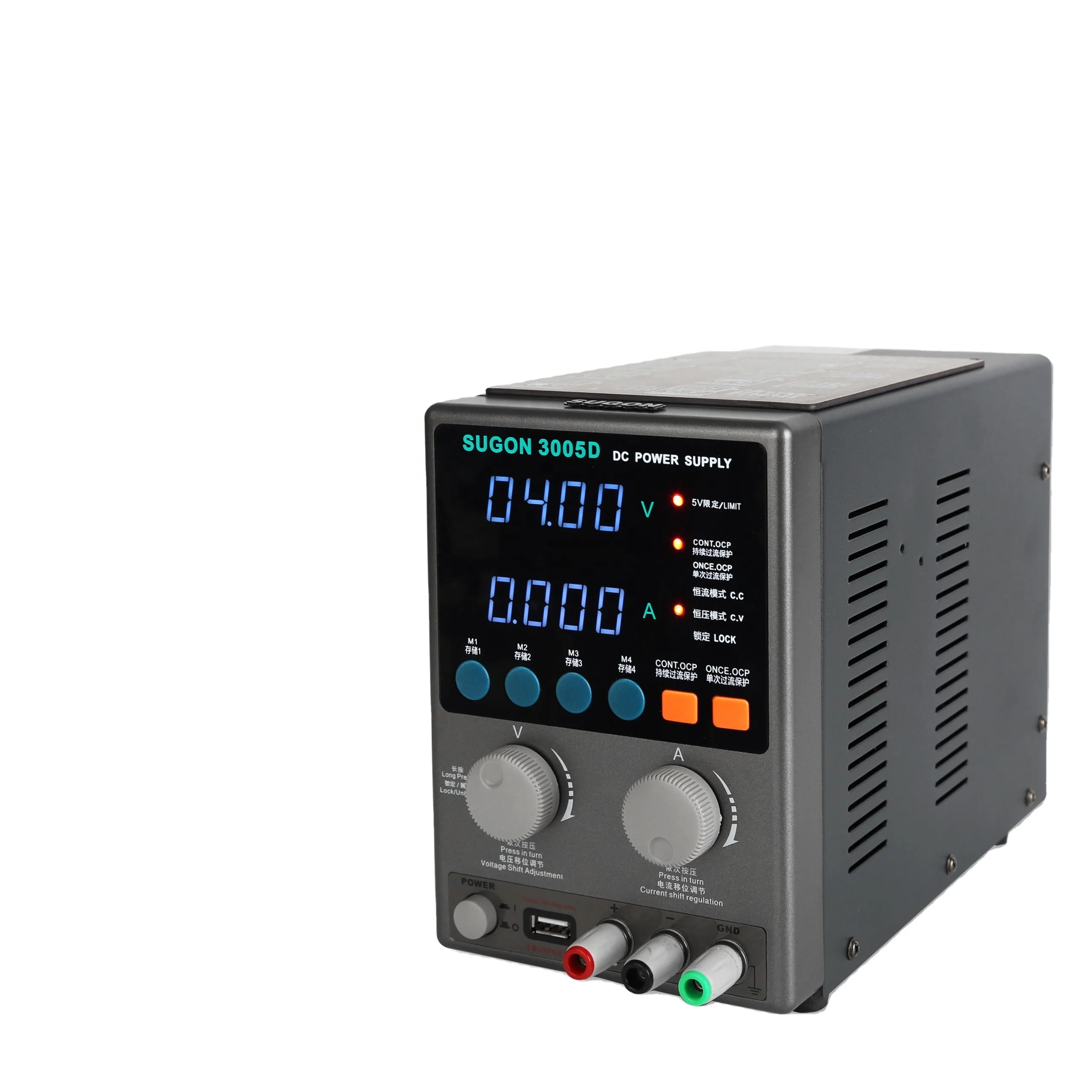

SUGON 3005D Digital Adjustable 30V 5A DC Power Supply

SUGON 3005 220V 150W Adjustable Digital DC Power Supply


Out of stock

Added to wishlistRemoved from wishlist 4
Add to compare

SUGON 3005D DC Power Supply Adjustable 4 Digits Display 30V 5A Power Supply for phone repair. Laboratory Digital Power Supply 110V 220V Voltage Regulator.

30V/5A full digital power control single

10mV/1mA high accuracy and resolution

Low noise and ripple

CV/CC given voltage and constant current mode

Highly reliable OCP, OVP, arbitrarily set protection

Built-in set of parameters stored

Outputs a switch control

Power and memory function

Keypad lock to prevent misuse

Intelligent temperature control fan, effectively reduce the noise

Easy alternative to traditional digital power

Precisely generate the required voltages and currents.

0-30V adjustable DC output high-precision.

10mV and 1mA resolution.

Professional power supply design with intuitive operability.

Simple and intuitive operation, fast and accurate selection of voltage and current can be realized.

To prevent damage to the load can be set to the value of over-voltage protection and over-current protection to prevent the voltage regulator from beyond the threshold can

The keyguard lock panel buttons to prevent undesirable results in the key test engineering

Just press the button to recall and save area a key to bring up the user to store the data and save user settings

Specification SUGON 3005D Power Supply :

Operating Conditions :

Input voltage : 220V /110V+/

Frequency range : 50- 60Hz

Operating temperature : 32-104 ℉ (0-40 ºC)

Operating humidity : < 80%RH

Storage temperature : 32-158 ℉ (0-70 ºC)

Storage humidity : < 70%RH

Stable Voltage :

Output Voltage Range : 0-30V Continuously adjustable

Setup Resolution : 10 mV

Setup Accuracy : <0.05% +20 mV

Ripple : < 1mVRMS

Read back Accuracy : 10 mV

Temp. Coefficient : < 0.1% + 10mV

Read back Temp. Coefficient : < 100 ppm+10 mV

Stable Current SUGON 3005D Power Supply :

Output Current Range : 0-5A Continuously adjustable

Setup Resolution : 1 mA

Setup Accuracy : <0.1% +3 mA

Ripple : < 3mARMS

Read back Accuracy : 1 mA

Temp. Coefficient : < 0.1% + 5mA

Read back Temp. Coefficient : < 100 ppm+5 mA

Dimensions : 4.3 x 6.1 x 10.25 inch (110 x 156 x 260mm)

weight: 5kg

Package includes :

1 x Adjustable DC Power Supply

1 x Power line (EU/AU/US)
