Name: RF4 RF7050TV 7-50X Mobile Phone Repair Trinocular Microscope
SKU: 162
Price: 22500.00 BDT
Availability: InStock

RF4 7050TV Mobile Repair Microscope

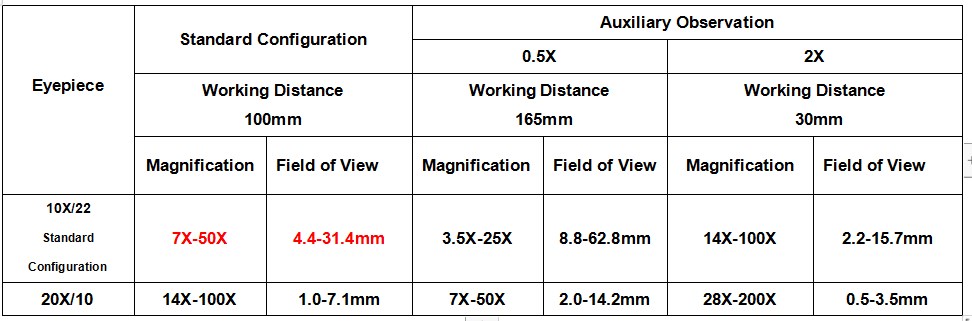

(1) Magnification: 7X to 50X continuous zoom
(2) Head: 360 degree inclined 45 degree rotatable trinocular
(3) Eyepiece: WF10X/22MM
(4) Barlow lens: 0.5X and 0.7 and 2.0X (optional )
(5) Objective: 0.7-5.0X
(6) Camera connector: 1/2ctv
(7) Monitor and eyepiece. Synchronous zoom
(8) Camera: different models optional
(9) Boom bracket: 250mm φ32mm pillar, 200mm*255mm base with white/black round plastic plate
(10) Accessories: adjustable 144 led light and dustproof lens

New Product RF4 7050TV Operating Microscope fluorescent microscope For Mobile Phone Repair Trinocular Microscope

Magnification:continuous zoom 7X to 50X Head: 45-degree inclined 360-degree swiveling trinocular Eyepiece: WF10X/22MM Barlow Lens: 0.5X & 0.7&2.0X(optional) Objective: 0.7-5.0X Camera connector：1/2ctv Monitor and eyepiece. Synchronous zoom Camera:Different models optional Boom Stand: 250mm φ32mm pillar, 200mm*255mm base with White/Black Round Plastic Plate Accessories: 144 adjustable led light & dust proof Lens

Product Description

Microscopic structure

1 Eyepiece Shield

2 Eyepieces

3 Zoom Control Knob

4 Microscope bracket

5 clip

8 Focusing knob

6 black and white plate

7 Base

9Round Column

10Head

Support parameters

Column aperture: Φ32mm Lens aperture: Φ76mm Center distance: 155mm Lifting range: 50mm

The base parameters

Column height: 240mm Diameter：φ32mm Equipped with pressing tablet and Φ95mm black and white plate Base: 200 x255x22mm

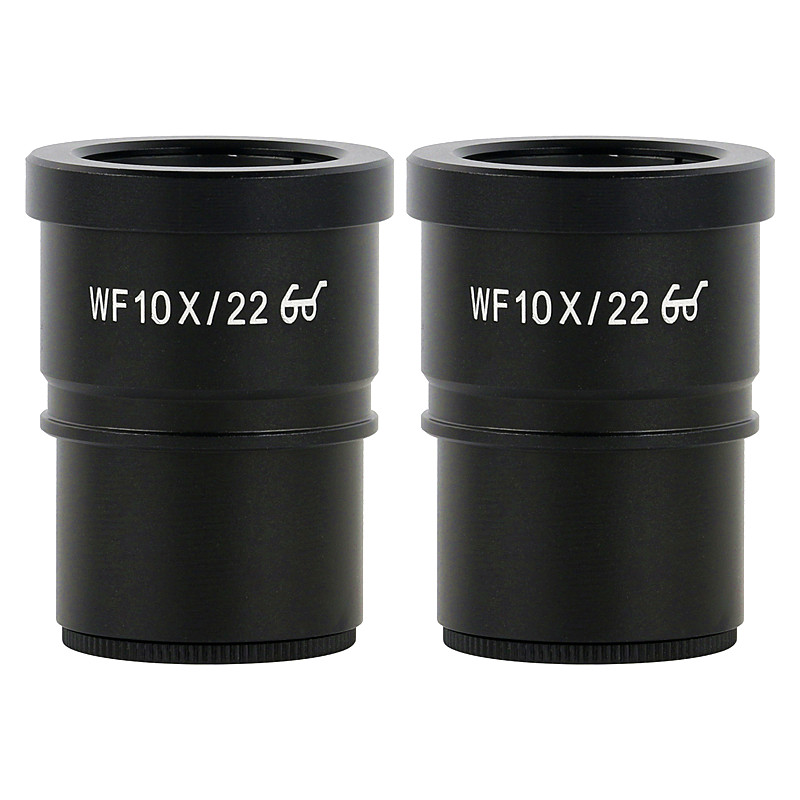

Wide-angle eyepieces 10X/22

Magnification: 10X

Wide Field Of View 22mm

Matching size : 30mm

Applicable models are stereoscopic, fixed and continuous magnification microscopes

0.5X CTV

1The material is all metal, the black part is aluminum alloy, and the silver part is copper chrome-plated bayonet. 2The adapter ring can use LCD to focus, this kind of focus method is manual focus. 3 The adapter has a transparent mirror inside, which can help the microscope display and the other display to achieve synchronous zooming. 4 Weight: 0.09kg.
