Working condition Temperature -10°C-40°C,relative humility≤90%
Storage condition Temperature -10°C-40°C,relative humility≤80%
Input Voltage:220V
Output Voltage:0-30V
Output Frequency:50/60Hz
Output Current:0-5A
Display style:LCD display
Product size:110*155*245MM
Net weight:4.3KG
Built-in 5 groups of parameter storage
Memory store when power off
Keyboard lock to prevent misuse
10mV/1mA high precision and resolution
Low noise
protection types circuit protection, overload and over high temperature protection.

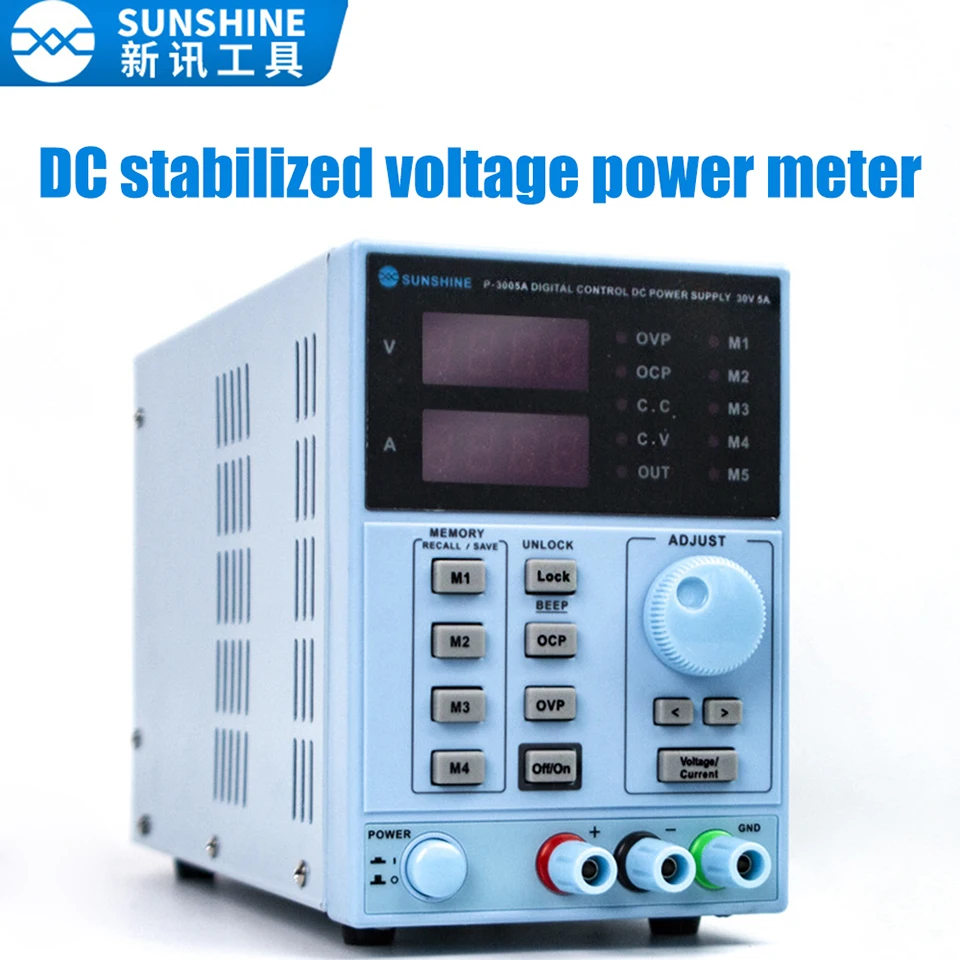

Features of DC-POWER SUPPLY 30V5A P-3005A:
1. The 5A adjustable dc power supply is with high quality and high power transformer, the machine power
is enough, can really achieve the voltage output 30V, current output 5A, and can accurately set the
protection current size.

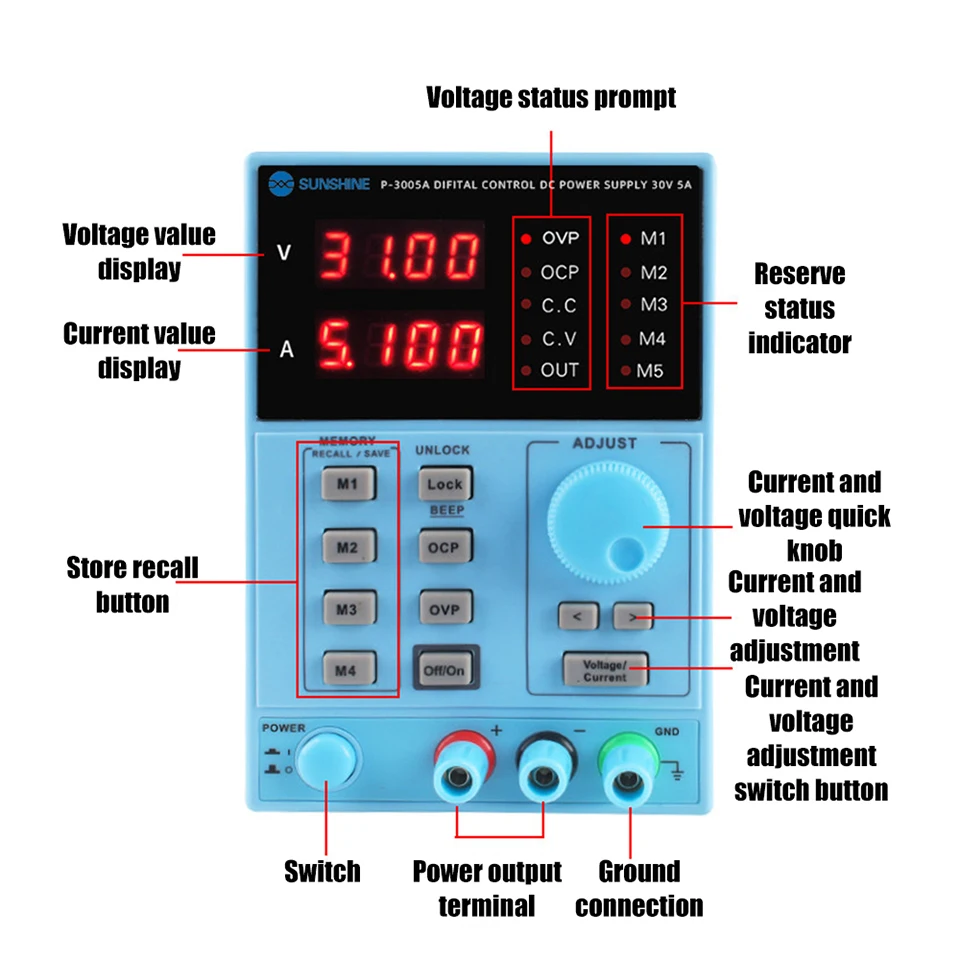

2.4 bit accurate control and display, bring more precise control, and constant pressure flow protection
mode, effective protection of the safety of the load.
3. The whole process circuit after the factory more than 10 years of continuous improvement and innovation, precise control, mature technology, high safety, stable and reliable by users at home and broad is certainly.
4 built-in temperature control protection circuit, when the machine internal heating temperature of over
40 degrees, the cooling fan will automatically run, when the power is connected to load more than the maximum load of the machine will automatically protect, stop output, effectively protect the use of power supply safety, extended service life.

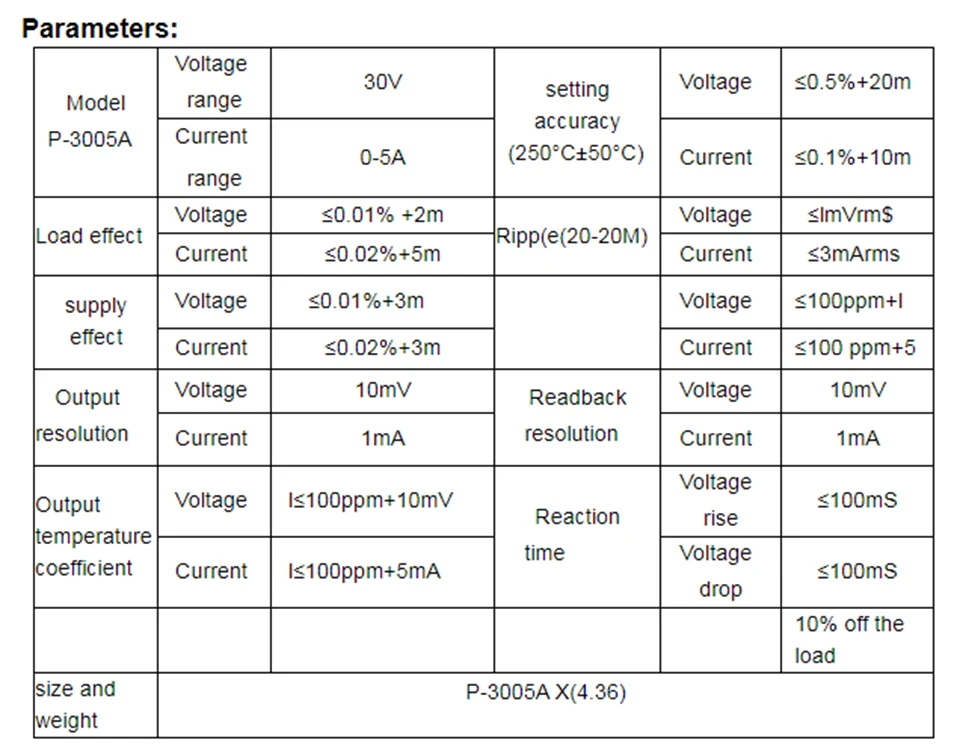

Product Specification :
Product Name: NC programmable DC Power Supply
Model: P-3005A
Product Size: 110 (W) *156 (H)*260 (D) mm
Weight: 4.5kg
Output Voltage: 0-30V
Output Current: 0-5A
Number of channels: single channel
Output resolution: Voltage: 1mV Electric current: 1mA
Display Type: Voltage/Electric current/4 digit digital display
Load Effect: Voltage: ≦0.01%+2mV Electric current: ≦0.02%+10mA
Power supply effect: Voltage: ≦0.01%+3mV Electric current: ≦0.02%+3mA
Set Accuracy: Voltage: ≦0.5%+20mV Electric current: ≦0.01%+ 10mA
Ripple: Voltage: ≦2mVrms Electric current: ≦3mArms
Output Temperature Coefficient: Voltage: ≦150ppm Electric current: ≦150ppm
