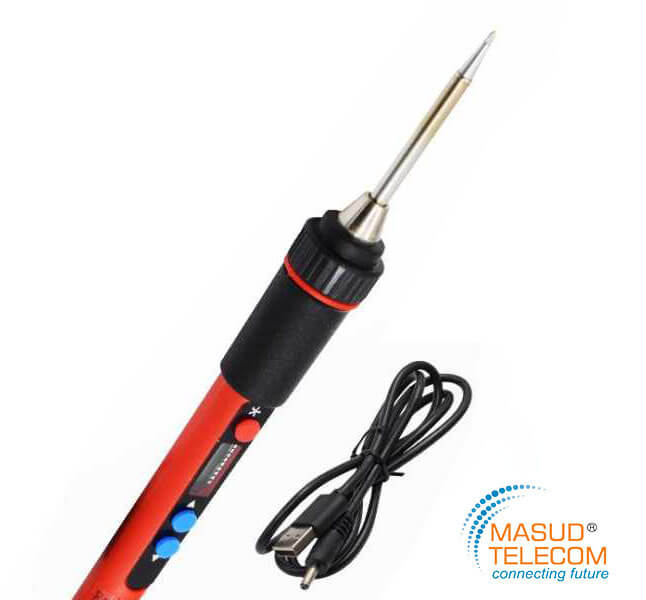

PX-988U USB Soldering Iron DC 5V/100W


Added to wishlistRemoved from wishlist 1
Add to compare
SKU: 0047 Categories: ,

Suhante PX-988U USB 5V 10W LCD Digital Thermostat Adjustable Lead With Soldering Iron Tips 800-2C PX-9882C

Product model: PX-988U
Power consumption:10W
Input/output voltage:DC 5V  input current≥2A
Adjustable temperature: 50-480 (° C)
Power source: USB-5V
Tips items: 800-2C (2.0mm)
Heating element: Stainless Steel Heater
Power Supply Modes: Power Adapter/Car Power/Mobile Power
Features :
Constant temperature with backlight, rapid temperature rise, the temperature can be adjustable.
Can be applied to power bank, recharger, car USB interface, etc.
Large screen of high-definition digital display can display temperature clearly and accurately.
Equipped with lead-free soldering iron tip and stainless steel heating element to increase welding life.
Power on:
When the plug in the power, please press * key, the power will be on.
The acquiescence temperature is 350℃.
Set temperature:
When the power is on, if you need to adjust the temperature, please press the▲or▼key to set the temperature you want, this time the LCD will display the twinkling value of set temperature. The temperature will goes up or down 5℃ when you press once. After 3 seconds, the iron will go back to work, and display the new temperature you set.
Temperature calibrating:
If the real temperature and the display temperature with deviation, then we need to calibrate the soldering iron. When the power is on, and the temperature is constant, test the real temperature by thermometer (We recommend the soldering iron thermometer), then press the * for one time to go into calibrating, then input the value of deviation by ▲or▼key, after 3 seconds the iron will go back to work, then temperature calibration is finished.
For example:
The display temperature is 350℃, but the real temperature be tested is 380℃, then press * key to go into calibrating, and press the▼key to set down 30℃,after 3 seconds the iron will go back to work, then finish temperature calibrating.
Turn off:
Keep press the * key for 3 seconds, the iron will turn off automatic.
Warning: Disconnect the power plug before servicing. It must be replaced by the manufacture or similarity qualified person to avoid personal injury or damage to the unit.

Product description

1. Mini pen size, light weight for portability, convenient for operation.
2. Powered by USB cable, compatible with DC 5V USB port, such as computer, laptop, phone adapter
3. The maximum heating temperature is up to 480℃, used for welding and soldering.
4. Plug and play, the welding tip is getting hot for about 15 seconds once power‑on.
5. Safe and reliable, comfortable to hold, come with 6pcs soldering iron tips.

Specification of PX-988U usb Soldering Iron:
Condition: 100% Brand New
Item Type: Soldering Iron
Material: Plastic
Rated Voltage: 5V
Power: 10W
Tip Temperature: 50~480℃
Model: PX-988U
Stable Temperature: ±5℃ (without load)

Package List:
1 x Soldering Iron
1 x USB Plug
6 x Soldering Iron Tip
1 x Manual
